1. Geometrical Set 추가하기

    Insert -> Geometrical Set

    Geometrical Set에서
선택 후, Alt + Enter 키를 누른다.
    Properties -> Feature Properties -> Feature Name ->
    4th Step -> OK

2. Geometrical Set을 추가하여 4th Step로 이름을 수정한다.

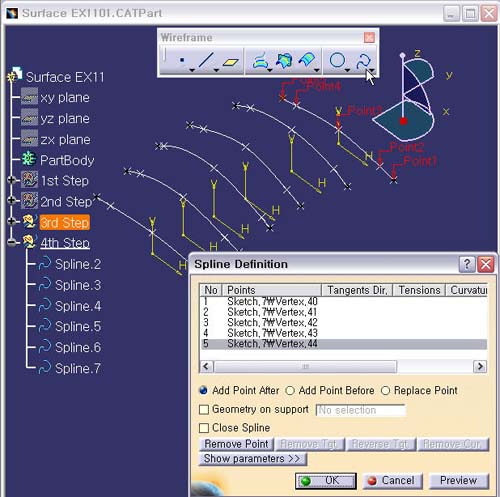

3. Spline 아이콘을 선택한다.

    3rd Step 에 존재하는 각각의 Plane 상에 5개의 Point들을
    Spline Curve로 다음과 같이 연결한다.
